1080P DVB T2 H.265 Set Top Box GX6701 Chipset Digital Hd Receiver

    Buy cheap 1080P DVB T2 H.265 Set Top Box GX6701 Chipset Digital Hd Receiver from wholesalers

    Buy cheap 1080P DVB T2 H.265 Set Top Box GX6701 Chipset Digital Hd Receiver from wholesalers
    • Buy cheap 1080P DVB T2 H.265 Set Top Box GX6701 Chipset Digital Hd Receiver from wholesalers

    1080P DVB T2 H.265 Set Top Box GX6701 Chipset Digital Hd Receiver

    Ask Lasest Price
    Brand Name : KINGTECH
    Model Number : MINI DVBT2
    Certification : CE,ROHS,FCC
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1,000,000pcs
    Delivery Time : 20-30days
    • Product Details
    • Company Profile

    1080P DVB T2 H.265 Set Top Box GX6701 Chipset Digital Hd Receiver

    Dvb-T2 Mini H.265 Set Top Box Digital Hd Resceiver Set Top Box Russia


    • Receive Over-The-Air DVB-T2 Digital Broadcast to your Analog and Digital TV, Projector, and Computer Monitor. Antenna Out Analog Pass Through, Favorite Channel List, Parental Control Function
    • HDMI 1080P Output / Composite Out / Telex, Auto Tuning, Timing Start Up & Shut Down.
    • Real-Time Recording & Programmed Time Recording, recording require user to connect a USB 2.0 or 3.0 2.5" / 3.5" External Hard Drive via USB (Up to 2TB, MBR format) (USB Flash Drive Not recommended)
    • USB Multimedia function play back Video, Music, Photo from USB Drive
    • **PLEASE NOTE**:This converter box is designed to receive Over-The-Air signal, and it is not a replacement of cable box. External Antenna is required to connect to this converter box in order to receive signal.
    Main SPEC& Features:
    * DVB-T2 HD Receiver with GX6701 Chipset* LED Display Option
    * Support Youtube, megogo,IPTV, RSS, Weather etc....* Dolby option
    * Fully supports DVB-T2/T/C, H.264,HD MPEG 2, MPEG4,HD H.264 Decoder* 4:3PS,4:3LB,16:9
    * Supports 720P,1080i,1080P(FULL HD)* Supports updating software by USB
    * 2*USB 2.0, Media player for H.264,AVI, MKV, MP3, MP4, JPEG etc..* 7 days EPG
    * PVR, Schedule recording* Banner-- time & transparancy control abillity
    * Multi-language OSD* Display of signal strongness & quality
    * Local language MENU* Powerful channel editor functions
    * H.264 & MPEG-2/MPEG4 decoding* Automatic or manual Area serching
    * TV Format: PAL, NTSC, PAL-M,* Full function Remote Controller.
    * Time shift function

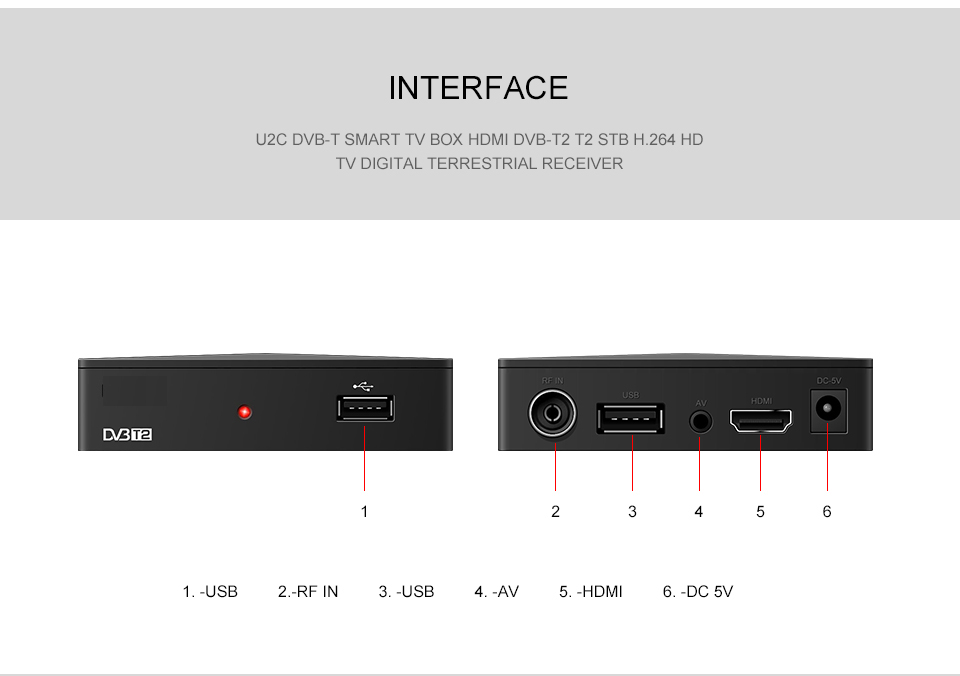

    * I/O ports: RF in, HDMI, RCA,2* USB input ,DC input
    Main systemAudio/video data in/out
    CPUGX6701Output:RCA
    Flash Memory512M bitesHDMI
    SDRAM32M bites
    TunerR836
    Tuner & DemodulatorPower supply
    ANT. ConnectorIEC TYPE, femaleInput voltage:5V/1.5A
    Loop OutpurIEC TYPE, maleConsumption:Max. 6W
    Input Frange range170230MHz ,470860MHzProtection:Separate fuse & chassis ground
    Input Impedance75 Ωor electric shock protection
    Input Signal level78 dBm to -20 dBm (average power)
    IF Bandwidth7MHz and 8MHz
    Mpeg Audio/ Vedio DecocdingOperation Enviroment:
    VideoMPEG 2(ISO/IEC 13818-2)
    MPEG-4 (ISO/IEC14496)Operation tempreture +5℃~55
    H.264 (ISO/IEC14496-10)Storage tempreture -40℃~ +65
    Profile LevelHD MPEG 2, MPEG4 HP@L4, MP@L3
    MPEG-4 ASP D1(720*480*30/720*576*25)
    Input rateMax. 60M bitsDimension
    Aspect ratio4:3, 16:9, letter boxSize (W*D*H):120*74*26mm
    Video Resolution480i/576I /720P/1080i/1080P(FULL HD)Gift box:155*120*50mm
    Audio decodingMPEG-1(Layer1&2&3)/,MP3Carton:400*380*295mm 40PCS/Carton
    Audio modeMono/Joint Stereo/Stereo/DolbyN.W:11.0KG G.W:11.5KG
    Audio standard: ISO/IEC 14.496-3loading continer:23800PCS/20GP, 55860PCS/40GP
