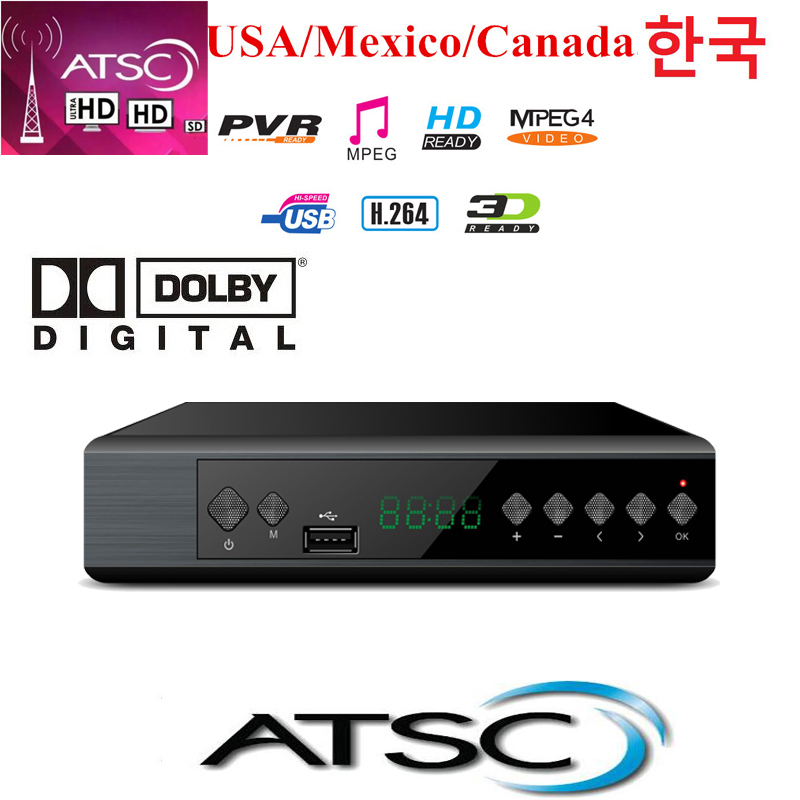

Atsc Digital Converter Box With Recording / Media Player Free To
Air
Specification:
CPU:MSTAR-MSD7802(128 pin) MIPS 34Kf@600MHZ
Memory: 32X16Mbit DDR2 Frequency1066
Flash: 32M bytes
Demodulator Type: MSB1237 Chip Set
TUNER:Rafael R836
USB 2.0:Embedded One Host,
Front Panel:4-digit LED display on front panel ; RED LED
Standby,GREEN LED Lock
Demodulation
Standard ISO/IEC 13818-1; ARIB STB-B10
Input max. bit stream rate: 36Mbps (serial) / 9Mbps (parallel)
ATSC NTIA and 8VSB Standard
QPSK, 64QAM, 256QAM
FEC: 1/2, 2/3, 3/4, 4/5,5/6,
Guard Interval: 1/4,1/8,1/16,1/32,1/128
FFT Mode: 2K, 8K, 32K
RF input frequency: 54-803MHz
Bandwith: 6MHz
Input level: -83 - -5dBm
Sortware Features
USA ATSC 8VSB /64/256 QAM digital broadcast HD receiver
Converts digital broadcast to your analog TV
By remote control to choose the RF 3/4 ch output
Sleep Timer
Support teletext/subtitle/muti-language
Powerful and highly effective 7-day EPG function
AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G
Scan, 4:3 Full, 16:9 Wide Screen

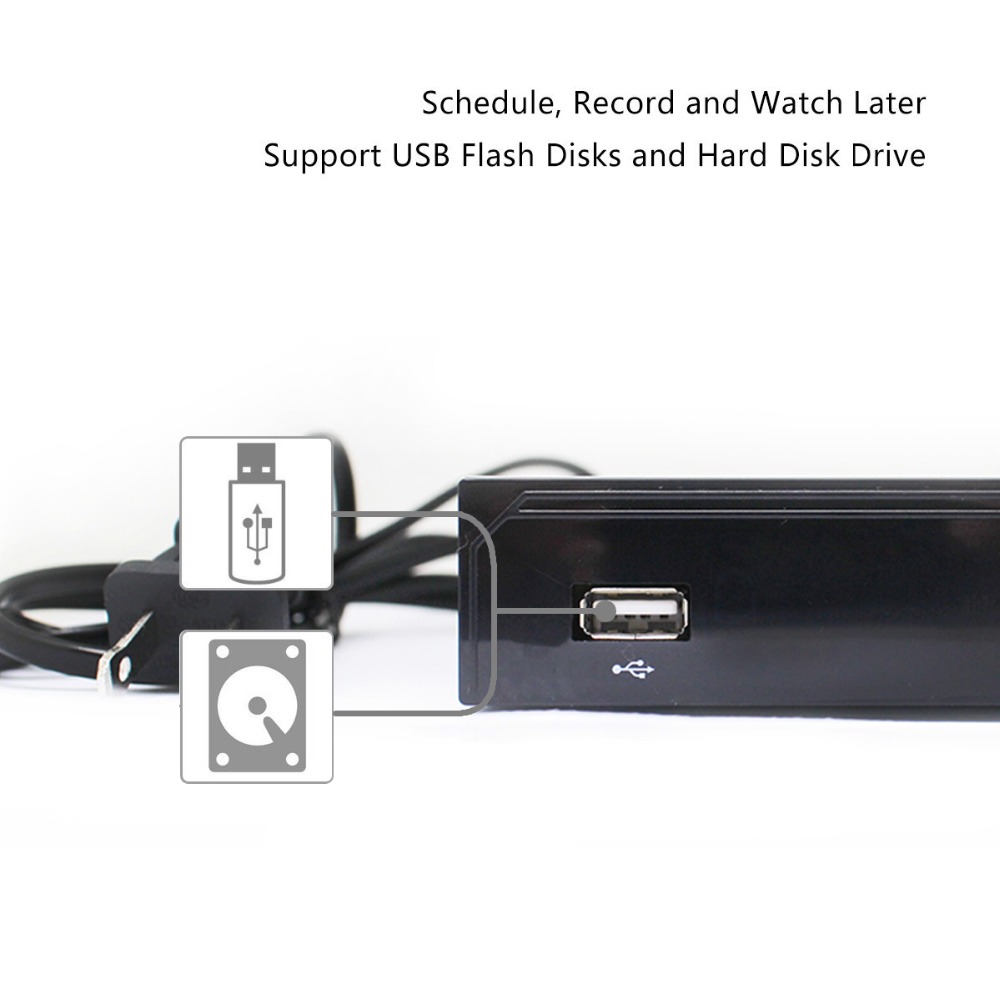

USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback
Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P
Rear Panel
Tuner RF input connector
Tuner RF Loop through connector
HDMI V1.3
AV RCA x1
Ypbpr RCAx1
CH3/CH4 x1
Power AC100~240V 50Hz/60Hz
Video Decoding
Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818
MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)
MPEG-2 Main Profile# Main Level(15Mbps)
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)
Audio Decoding
MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA
E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel
decoding
MediaCode:avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc
Accessories
gift box
AV cable
IR remote control
User Manual
TV BOX
PLEASE NOTE
This product is only applicable to the following countries Canada
Mexico Korea America Dominica Honduras Puerto Rico and Surinam If
you do not belong to the above countries please DO NOT purchase
because other countries CAN NOT use it

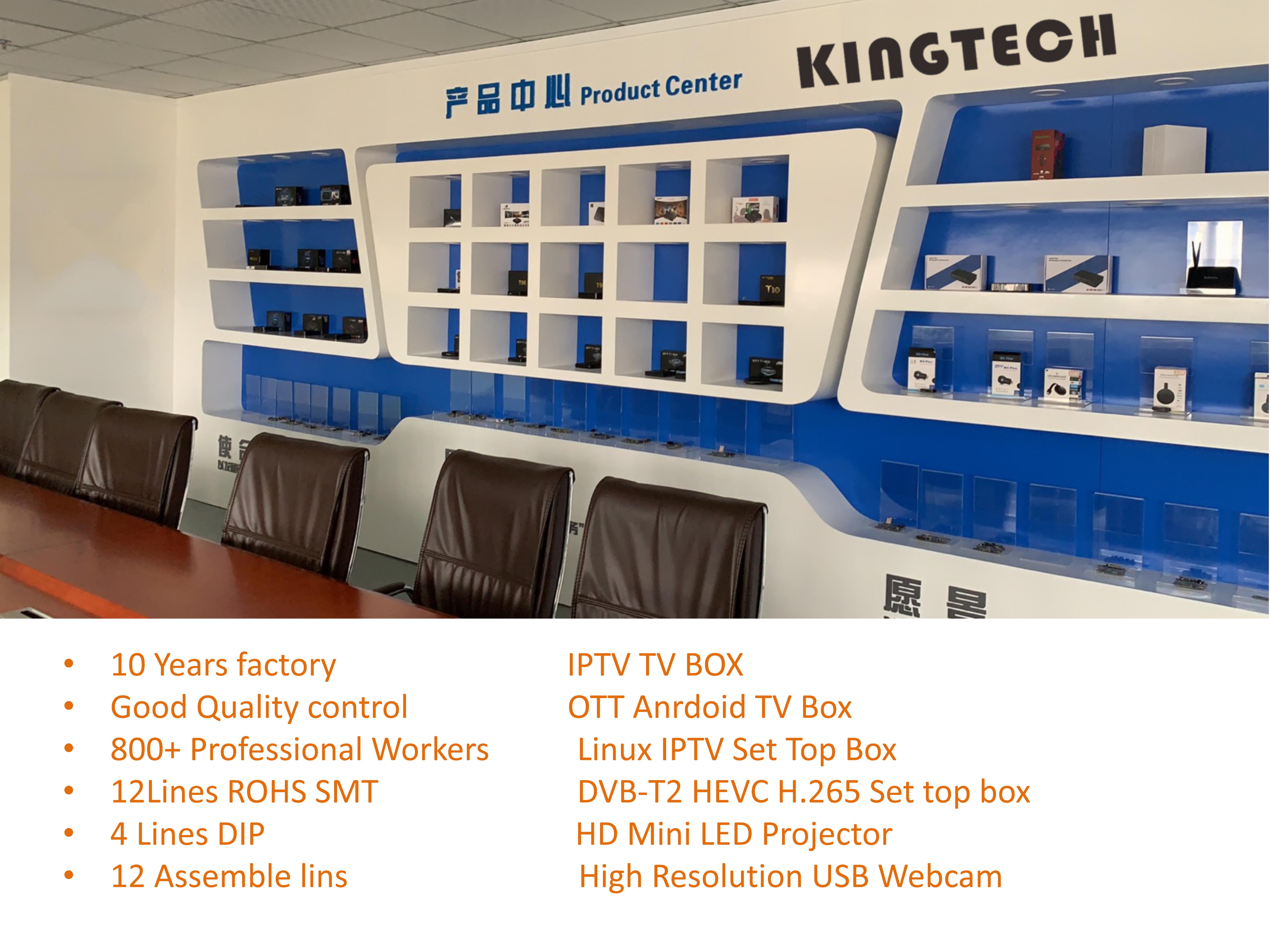

KINGTECH has been a leading company in consumer electronics product
since 2011.Our major products in include Set Top Box(DVB, IPTV,
OTT), Home Projector, IP/Web Camera,Finder, and Smart home
products.As the frist -class electronics enterprise in china and as
business is the intensely increased, KINGTECH's factory coversover
30,000 square meters located at Gongming ,Shenzhen, which is a low
carbon city. Our factory has introduced the Quality Management
System ISO9001:2000 ,Environmental Management System
ISO14001:2004,BSCI system and in correspondence with ROHS,CE,
UL,FCC FDA and so on.we could always gurantee the reliable quality
with competitive price.
