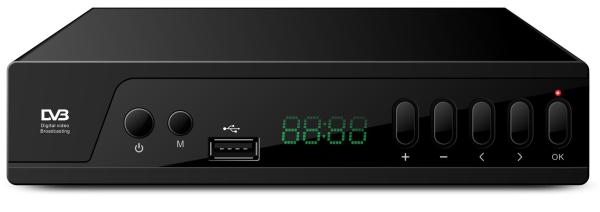

ATSC Converter With Dolby CH3/CH4 HDMI USB Digital TV Receiver

• HD ATSC converter for American market
• Receive ATSC-T 8VSB digital broadcast signals
• Compatible with MPEG-4/H.264, MPEG-2 and ATSC-T standard
• Supports CH3/CH4
• Advanced video/audio parameters adjustment
• 7 days EPG
• Auto & manual scan

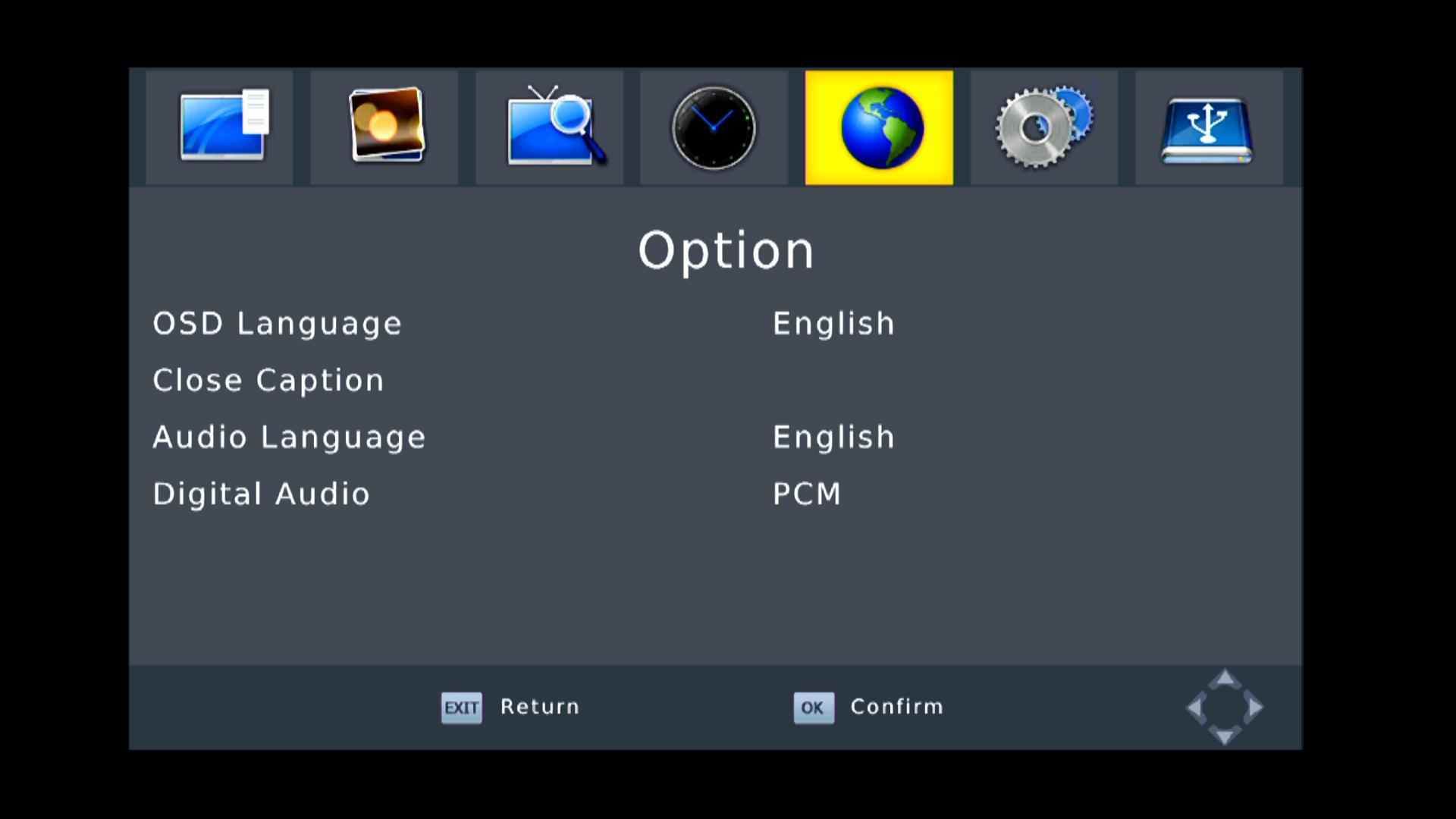

• Multi-language OSD & subtitles
• Parental controls & Vchip 2.0
• Scheduled play and recording
• Closed caption and CC bypass
• Output display resolution: NTSC, 480P, 720P, 1080I
• Input frequency range: 54-863MHz
• Sensitivity: -83dBm-5dBm
• Demodulation: ATSC NTIA standard, 8VSB
• Bandwidth: 6M
• USB2.0 PVR, time-shift, software upgrade, multimedia playback
• NTSC loop through supported
• User manual (1)
• Remote control (1)

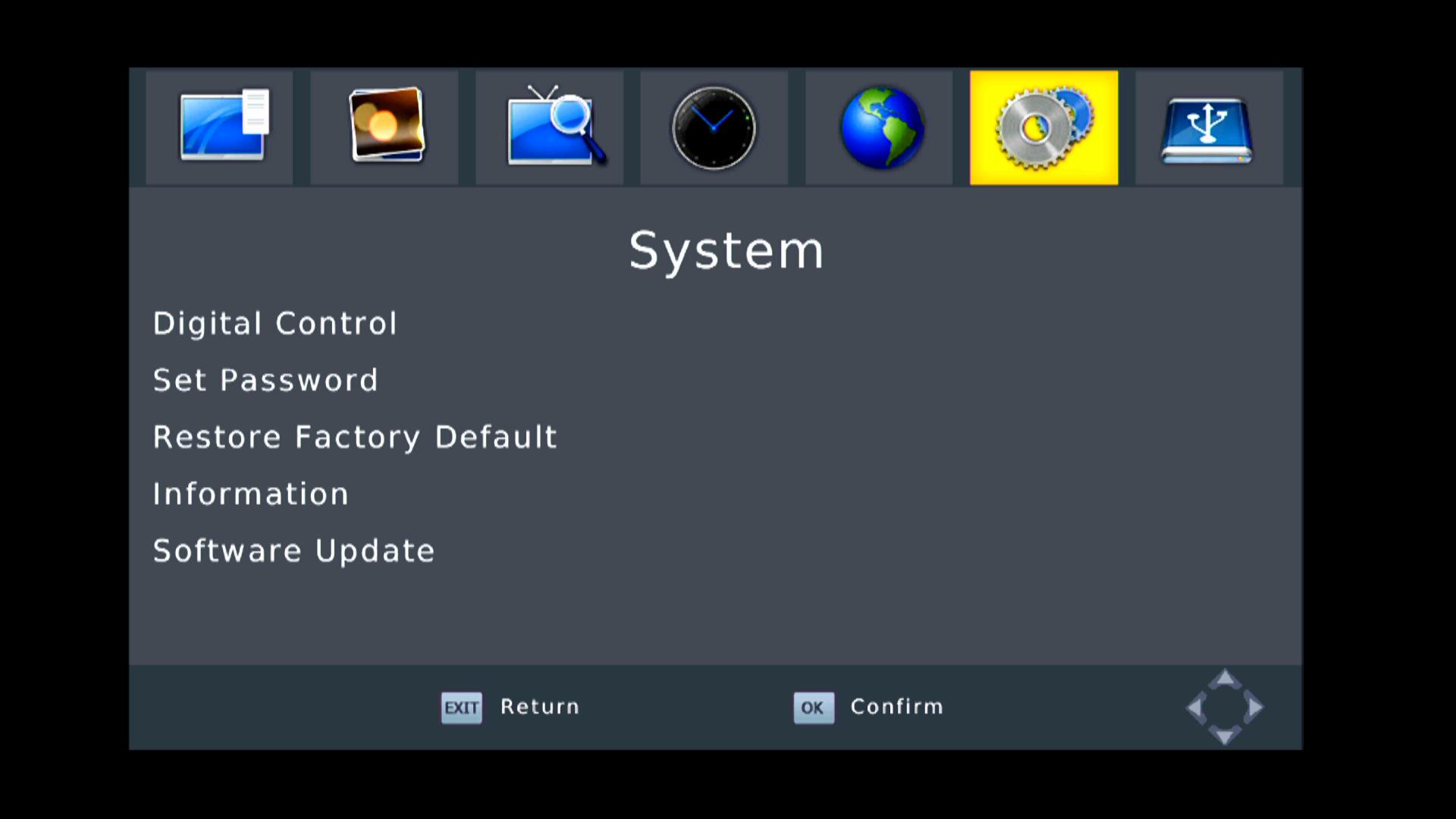

Press MENU on the remote control to access the System menu.

• Press UP/DOWN to select a menu item.
• Left and right arrows indicate that a selected menu item can be adjusted. Press LEFT/RIGHT to adjust the menu item setting.
• Press OK to confirm your changes； press EXIT to cancel.

Edit your channel program preferences. This menu is protected by a passcode； enter the default passcode 000000.

Select a channel/program, then:

MOVE: Press [ 01 ], then press UP/DOWN to move the position of the program when the move indicator appears. Press OK to confirm.

SKIP: Press [ 02 ] to mark the program to be skipped in the channel list.

LOCK: Press [ 03 ]to require a passcode to view a program. A Lock indicates that the channel is locked. The default passcode is 000000.

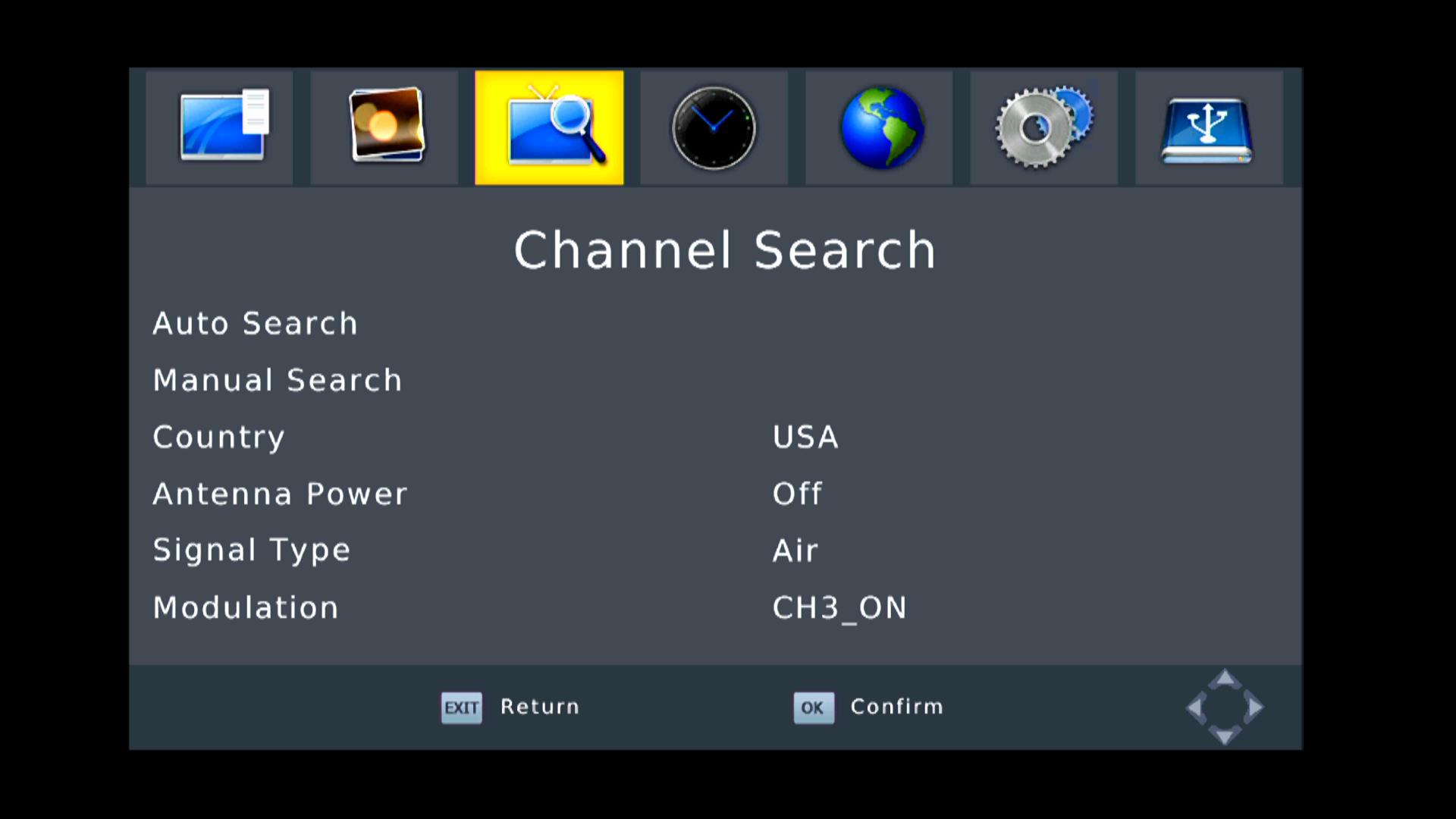

Channel Search Options

Auto Search

Note: The maximum resolution is 1080p. Do not set the resolution higher than your connection type or TV can support.Automatically detect available channels and create a Channel list. This will override the existing Channel List.

Select Auto Search and then press OK.

Press EXIT to cancel the search.

Manual Add channels to the Channel List manually with- Search out overriding the existing Channel List.

Select Manual Search and then press OK.-On the Manual Search screen, you can select a channel and adjust its Frequency and Bandwidth. The Quality bar indicates the strength of the signal.

Shipping Information:

• FOB Port:Shenzhen
• Lead Time:25 - 30 days
• HTS Code:8528.71.80 00
• Dimensions per Unit:18 × 16 × 5 Centimeters
• Weight per Unit:0.46 Kilograms
• Units per Export Carton:20
• Export Carton Dimensions L/W/H:379× 28 × 34 Centimeters
• Export Carton Weight:

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Any third-party trademarks or images shown here are for reference purposes only. We are not authorized to sell any items bearing such trademarks.

Factory Profile

KINGTECH has been a leading company in consumer electronics product since 2011.Our major products in include Set Top Box(DVB, IPTV, OTT), Home Projector, IP/Web Camera,Finder, and Smart home products.As the frist -class electronics enterprise in china and as business is the intensely increased, KINGTECH's factory coversover 30,000 square meters located at Gongming ,Shenzhen, which is a low carbon city. Our factory has introduced the Quality Management System ISO9001:2000 ,Environmental Management System ISO14001:2004,BSCI system and in correspondence with ROHS,CE, UL,FCC FDA and so on.we could always gurantee the reliable quality with competitive price.

KINGTECH has reached over 1.0 million-units monthly capacity
Staffed over 80 experienced proficient engineers in R&D team, KINGTECH has the capacity to supply a total solution from ID design to final product and after sevice. As Kingtech always attach great importance to adoptlatest technology and constantly bring up the most up to date products to entertain our valued customers worldwide.

• 12 Assemble lines monthly production capacity 1.0million -units
• 12 SMT lines comply with Dustless/Rosh Standard

KINGTECH Supply high Quality Hardware Products, our hardware has main testing
7*24 Hours Severe Test with high bitrate steam
High Temperature load test
Low Tempteatuer load test
Drop and Vibration test
High Voltage test
Power Adaptation test
Electrostatic test

Meet The Requirement Of Various Customers
Roch experience in RF design hardware design can meet the requirement of various customers safe and reliable power supply solution customize different mould solution such as SAGEMCON, BESTBUY, WALMART etc....

Perfect Testing Team:
Standard testing example continuous improve testing method guarantee the reliability of software and hardware

Program Failure Testing:
Professional program failure testing. 1000times test under complusive power on/off condition and any kind of informal prower-off operation

Components Selection:
All components selected are well-known brand in the industry

Product Certificates:
CE,FCC,ROHS Product can pass CE/FCC certificates
