Product Introduction
NDS3975C is professional HD IRD which receives signals from
satellite and gives content out through various video/audio
interfaces after demodulating, de-scrambling, re-multiplexing and
decoding. The output video/audio support HDMI, CVBS, SDI, BNC, XLR
interface and SPDIF.
The two CAMs/CIs accompanied and BISS modules can descramble the
programs input from encrypted Tuner, ASI and IP.
Its pluggable structure design greatly facilitates the change of
modules (demodulator or decoder) as needed.
To meet customers’ various requirements, NDS3975C is also equipped
with ASI and IP input for re-mux, and output with 2 ASI ports and
IP port.
Key Features
* Demodulator + descrambler +re-mux+ decoder modules in one box
* 2 DVB-S/S2/S2X Tuner input
* 1 ASI & 1 IP (UDP) input for re-mux
* Each CAM can decrypt multiple programs from Tuner/ASI/IP
* BISS descrambling (Up to 120Mbps)
* Support 4:2:0 HD/SD MPEG2, MPEG4 AVC/H.264 and HEVC/ H.265
decoding
* Support MPEG 1 Layer II, LC-AAC, HE-AAC, HE-AAC V2, Dolby
Digital/Dolby Digital Plus decoding and AC3 passthrough
* Dual Stereo audio out (for SDI interface)
* IP (1 MPTS & 8 SPTS) output over UDP and RTP/RTSP; 2 ASI mirrored
out
* Support CC (EIA608, EIA708) & Teletext (Only for SDI)
* Support maximum 128 PID mapping per input
* Pluggable and changeable design
* LCD/Keyboard and web-based NMS management
* Updates via web

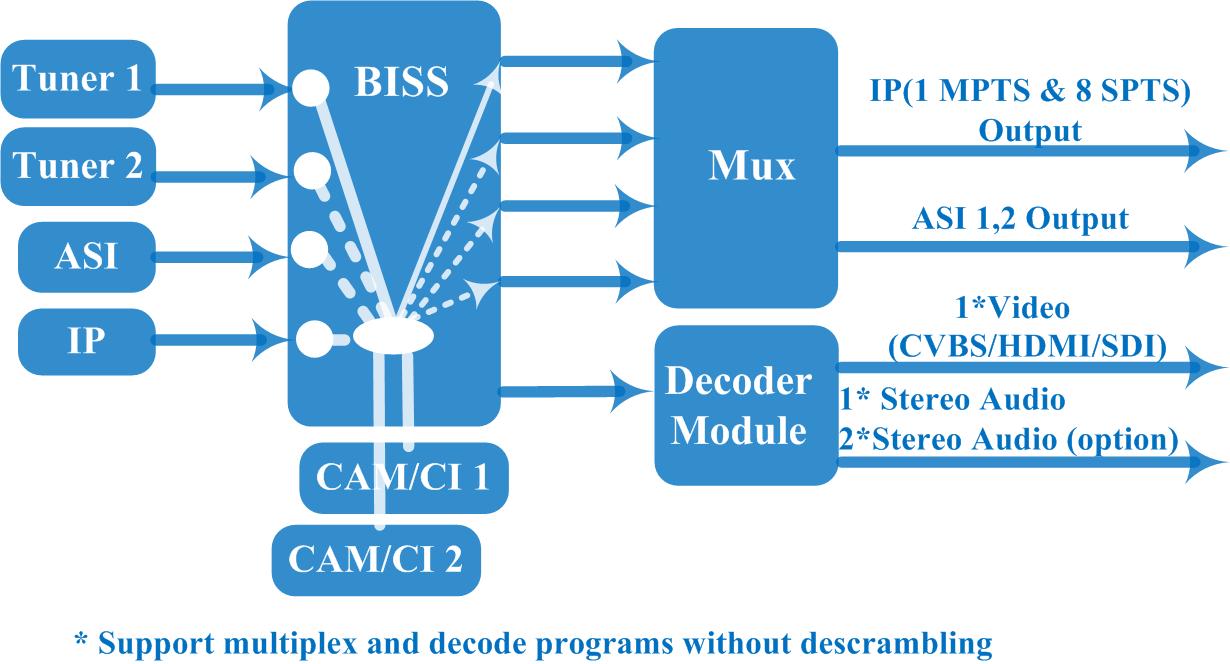

Principle Chart
Technical Specifications
| Input | 2 *Tuner, F type 1*ASI input for re-mux, BNC interface 1*IP input for re-mux (UDP) |
| Tuner Section | DVB-S | Input Frequency | 950~2150MHz |
| Symbol rate | 0.5~45Msps |
| Signal Strength | - 65- -25dBm |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Constellation | QPSK |
| Max input bitrate | ≤160 Mbps |
| DVB-S2 | Input Frequency | 950~2150MHz |
| Symbol rate | QPSK/8PSK /16APSK :0.5~45 Msps 32APSK: 0.5~40Msps; |
| FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4,
5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4,
4/5, 5/6, 8/9, 9/10 |
| Constellation | QPSK, 8PSK, 16APSK, 32APSK |
| Max input bitrate | ≤160 Mbps |
| DVB-S2X | Input Frequency | 950~2150MHz |
| Symbol rate | QPSK/8PSK /16APSK :0.5~45 Msps 8APSK/32APSK: 0.5~40Msps |
| FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45,
3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9 |
| Constellation | QPSK/8PSK/8APSK/16APSK/32APSK |
| Max input bitrate | ≤160 Mbps |
| Descrambling | CAM/CI Qty | 2 |
| BISS Mode | Mode 1, Mode E (up to 120Mbps) |
| Output | IP (1*MPTS & 8*SPTS) out over UDP, RTP/RTSP. 100Base-T Ethernet interface (unicast / multicast) |
| 2×ASI mirrored out, BNC interface |
| Decode Output | Video | Interface: CVBS/HDMI/SDI |
| Number of channels: 1 |
| Decode: 4:2:0 MPEG-2, MPEG4 AVC/H.264 and HEVC/ H.265 |
| Resolution:1920×1080_60p, 1920×1080_60i, 1920×1080_50p;
1920×1080_50i; 1280×720_60P, 1280×720_50P; 480i, 576i |
| Audio | Interface: HDMI, SDI, SPDIF, BNC, XLR, AES |
| Number of channels: 1 or 2 for option |
| Decode: MPEG 1 Layer II, LC-AAC, HE-AAC, HE-AAC V2, Dolby Digital/
Dolby Digital Plus |
Audio Output Mode: Left, Right, Stereo Stereo audio*2 (Applicable for SDI port only) |
| System | Local interface | LCD + control buttons |
| Remote management | Web-server Management |
| Language | English |
| Upgrade | USB, web management |
| Miscellaneous | Dimension | 482*300*44.5mm (W×L×H) |
| Approx weight | 3.5kg |
| Environment | 0~45℃(work)；-20~80℃(Storage) |
| Power requirements | 100~240VAC, 50/60Hz |
| Power consumption | 20W |
Technical Comparison
| NDS356xH | NDS3975B/C |
| CC /Subtitle/Teletext | Support CC & Subtitle | Support CC & Teletext (Teletext is on development) |
| Decoding Module | Video Interface | CVBS/YPbPr/HDMI/SDI | CVBS/HDMI/SDI |
| Video Decode Format | MPEG-2; MPEG4 AVC/H.264 | MPEG-2; MPEG4 AVC/H.264; HEVC/ H.265 |
| Audio Interface | HDMI, SDI, BNC, XLR | HDMI, SDI, SPDIF, BNC, XLR |
| Audio Decode Format | MPEG 1 Layer II, LC-AAC, HE-AAC, Dolby Digital/ Dolby Digital Plus | MPEG 1 Layer II, LC-AAC, HE-AAC, HE-AAC V2, Dolby Digital/ Dolby
Digital Plus |
| Audio Output Mode | Left, Right, Stereo, DD AC3 (5.1) CH (for HDMI/SDI out only) | Left, Right, Stereo |
| Output Resolution | 1080i-50/59.94/60, 720p-50/59.94/60, 576i, 576p, 480i, 480p, | 1920×1080_60p,1920×1080_60i, 1920×1080_50p;1920×1080_50i;
1280×720_60P, 1280×720_50P; 480i, 576i |
| Output channel | Dual channels audio and one channel video | One channel audio and video 2*Stereo audio out optional as per order ( NDS3975C SDI) |
